SUPER VAC’S MOST POWERFUL FANS

LARGE INDUSTRIAL FANS
FOR EXTREME VENTILATION

Super Vac offers some of the largest and most powerful fans in the world — our 30” portable barrel fan, a 48” truck-, trailer- or skid unit-mounted PPV and the industry’s most powerful fan, the 80” BFF mobile ventilation fan. These fans can be equipped with a variety of accessories for the ultimate in versatility.


MEET OUR LARGE VENTILATION FAN LINEUP …

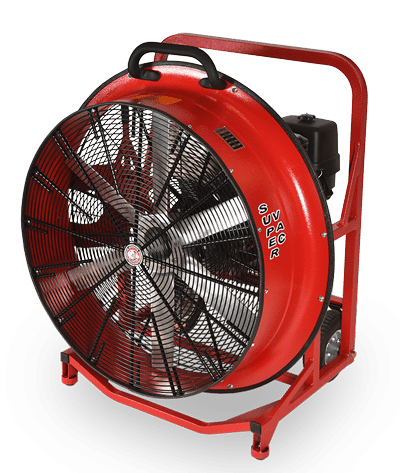

THE 730G4-H

30” GAS-POWERED FAN

This heavy-duty gas-powered fan features a 30” blade in our 7 Series steel-frame, roll-cage design with four-position tilt.

  • Blade size: 30”
  • Engine: Honda GX390
  • Output: 26,849 cfm
LEARN MORE

THE SVU

50” HIGH-POWER FAN

This 50” high-power fan is perfect for ventilating airport terminals, large warehouses, commercial structures and high-rise buildings.

  • Blade size: 50”
  • Engines: Cummins 3.8L Diesel or Kubota 3.8L Gasoline
  • Output: 200,000 cfm
LEARN MORE

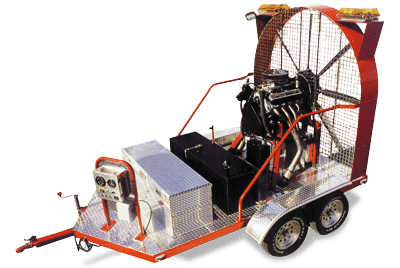

THE BFF

80” INDUSTRIAL FAN

The BFF is a whopping 80” large industrial fan, ideal for ventilating airport, tunnels, sports complexes and retail super stores.

  • Blade size: 80”
  • Engines: Gas or diesel (200-600 HP)
  • Output: 750,000 cfm
LEARN MORE

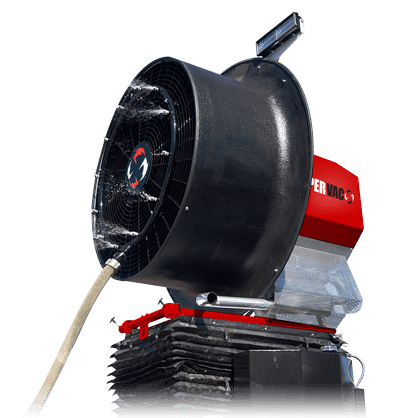

FIREFIGHTING ROBOT

unmanned up to 1,000 feet

Super Vac’s unmanned misting turbine by EmiControls propels water 300 feet and features a remote with 1,000-foot reach.

  • Polymer blade with turbine ring
  • Engines: Water turbine (25kW) / diesel engine (71 HP)
  • Output: 35,000 cfm with 300-foot misting reach
LEARN MORE

CONFINED SPACE FANS

LEARN MORE

BRAKE COOLING FANS

LEARN MORE

LARGE SCALE Fan Options


Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.


× How to use

Ventilation Duration Estimator

Select unit of measure:



Scroll right for full chart.


MODELSENGINESIZE*WEIGHT*DISPLACEMENTRPMSETBACKANGLEOUTPUT
730G4-HHonda GX39030″ Blade — HxWxD: 39″ x 37″ x 27.5″
990mm x 940mm x 700mm
163 lbs
74 kg
389 cc3,2206 ft
1.8 m
10°26,849 cfm
45,616 cmh
SVU-DD-50Cummins 3.8 Diesel50″ Blade — HxWxD: 82″ x 70″ x 42″
2,090mm x 1,780mm x 1,070mm
1,850 lbs
839 kg
3.8L2,45030 ft
9 m
200,000 cfm
339,800 cmh
SVU-50Kubota 3.8L Gasoline50″ Blade — HxWxD: 70″ x 70″ x 42″
1,780mm x 1,780mm x 1,070mm
1,540 lbs
703 kg
3.8L2,60030 ft
9 m
200,000 cfm
339,800 cmh
BFFGas or Diesel options (200 HP-600 HP)80″ Blade — HxWxD: 88″ x 84″ x 60″
2,240mm x 2,130mm x 1,520mm
3,600 lbs
1,630 kg
502 cu in4,50040 ft
12 m
750,000 cfm
1,259,000 cmh
SVU-50-TRKKubota 3.8L Direct-Drive Gasoline Engine50″ Blade — HxWxD: 70″ x70″ x 42″
1,780mm x 1,780mm x 2,720mm
1,740 lbs
800 kg
3.8L2,60030 ft
9 m
200,000 cfm
339,800 cmh

*Weight and size are both without trailer or skid.
