SUPER VAC’S HURST®
BATTERY-POWERED FANS
YOUR HURST JAWS OF LIFE® BATTERY
ARSENAL JUST GREW
COMPATIBLE WITH Hurst® EWXT™/E3™ battery-operated tools
Super Vac has partnered with the top name in rescue tools to bring you the only battery-powered fan that works with your department’s other HURST Jaws of Life® battery tools. Introducing the Super Vac V20-BH 20” variable-speed fan, this PPV is powered by dual HURST EWXT/E3 5.0Ah or 9.0Ah batteries, the same batteries that operate HURST eDRAULIC® Watertight Extrication Tools.
CHOOSE YOUR SERIES: OUR NEW V-MAX oR ORIGINAL VALOR Battery FANS
V-MAX
V-MAX SERIES BATTERY FAN
Super Vac’s newest battery-powered PPV featuring "MAX MODE" which supplies an extra burst of air with the push of a button, increasing airflow output up to 40% more than the original valor series.
- Up to 30% increase in output cfm/cmh on High Speed**
- Up to 40% increase in output cfm/cmh in MAX Mode**
- Egonomic handle and 180º tilt
- Available sizes: 16", 18" and 20"
VALOR
VALOR SERIES BATTERY FAN
Super Vac’s original compact, lightweight battery-powered PPV designed to work with your existing battery-powered tool platform.
- Lightweight and Compact
- Egonomic handle and 180º tilt
- Up to 9,413 cfm/15,993 cmh output**
- Up to 63 min. run time*
- Available sizes: 16", 18" and 20"
WHAT'S THE DIFFERENCE?
Super Vac's new battery-powered V-MAX PPV delivers airflows comparable to gas-powered ventilators with a 30% airflow output increase on high speed, and 40% increase in our new "Max Mode" setting.
Super Vac's new V-MAX edition features higher RPMs in both High Speed and Max Mode settings, producing more CFM/CMH output in less time versus our original battery-powered Valor series which features longer runtimes at lower CFM/CMH outputs.
*Runtimes based on dual HURST EWXT/E3 9.0 Ah Batteries
THE ALL NEW V-MAX SERIES
THE MAX-POWER BATTERY-POWERED FAN
THE battery-powered FAN with output numbers of a gas-powered fan
Scroll mouse or click above to rotate product.
1
MAX Mode power button:
Output CFM/CMH increases up to 40% more at the push-of-a-button.
2
Compact, Roll-Cage Aluminum Frame:
Features a tough yet lightweight aluminum frame to protect key components while providing a compact, lightweight design.
3
Fold-Down Ergonomic Handle:
Folds into the frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
4
Flat-Proof Rubber Tires:
Highly maneuverable, and all without lifting the fan; easy to deploy by the
smallest firefighters.
5
180-Degree Tilt:
Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere.
6
Scratch-Resistant Stair Skid Plates:
Provides ease of movement in high-rise response.
7
Hot Swappable HURST EWXT/E3 IP 58/Battery IP 68 Batteries:
Provides up to 28 minutes of max airflow on High-Speed and 19 minutes in Max Mode, depending on battery selection; 120-240V AC operation is standard (with optional delete).
8
Polymer Blade:
Minimizes weight; Super Vac’s single-piece cast aluminum blade is available by request.
9
Precision-Spun Steel Shroud with StreamShaper Guard:
Allows flexible setback; Air Cone Guard is available by request.
See the difference >
10
Standard Shore Power:
120-240V AC operation turns your DeWalt cordless fan into an electric-powered fan for even more versatility. Note: Shore power does not charge batteries.
11
LED Light:
Provides light for firefighters and assists seeing the fan in smokey room.
U.S. Patent No. 11,131,321, 11,795,970 and Patents Pending.
V-MAX HURST BATTERY FAN OPTIONS
Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.

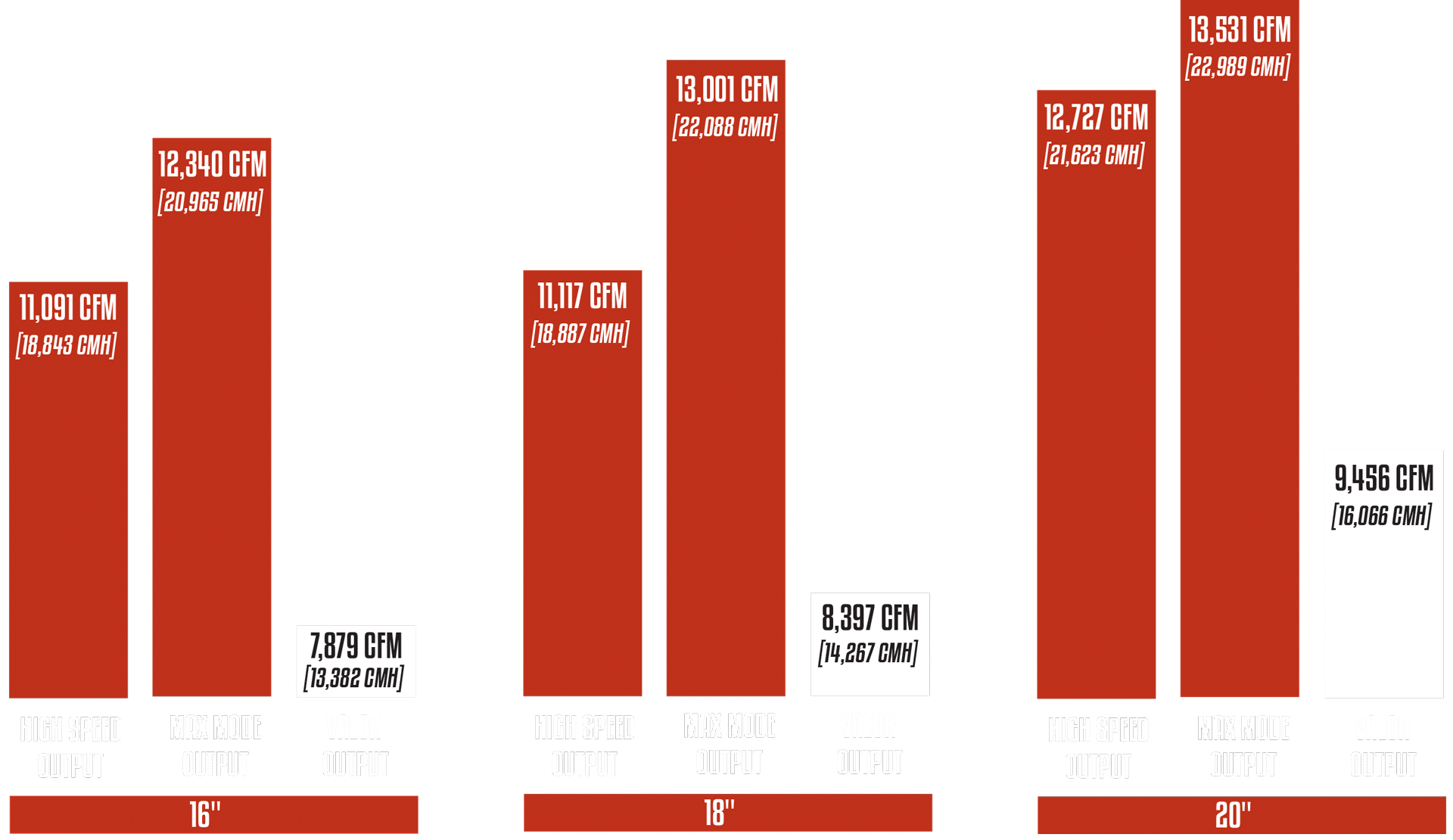

| V-MAX MODELS | SIZE | WEIGHT (WITHOUT BATTERIES) | Dimensions HxWxD | MOTOR | SETBACK FOR OUTPUT RATING | ANGLE FOR OUTPUT RATING | AMCA 240-22 CERTIFIED HIGH-SPEED OUTPUT | AMCA 240-22 CERTIFIED MAX MODE OUTPUT |
|---|---|---|---|---|---|---|---|---|
 VM16-BH-SP | 16" | 51 lbs 23 kg | 24.25″ x 23.75″ x 12.25″ 615mm x 605mm x 310mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 11,091 cfm* 18,843 cmh | 12,340 cfm* 20,965 cmh |
 VM18-BH-SP | 18" | 58 lbs 26 kg | 22.50″ x 26″ x 12.25″ 650mm x 660mm x 315mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 11,117 cfm* 18,887 cmh | 13,001 cfm* 22,088 cmh |
 VM20-BH-SP | 20" | 63 lbs 29 kg | 28.25″ x 28.75″ x 12.5″ 720mm x 730mm x 320mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 12,727 cfm* 21,623 cmh | 13,531 cfm* 22,989 cmh |
HURST EWXT/E3 BATTERY OPTIONS

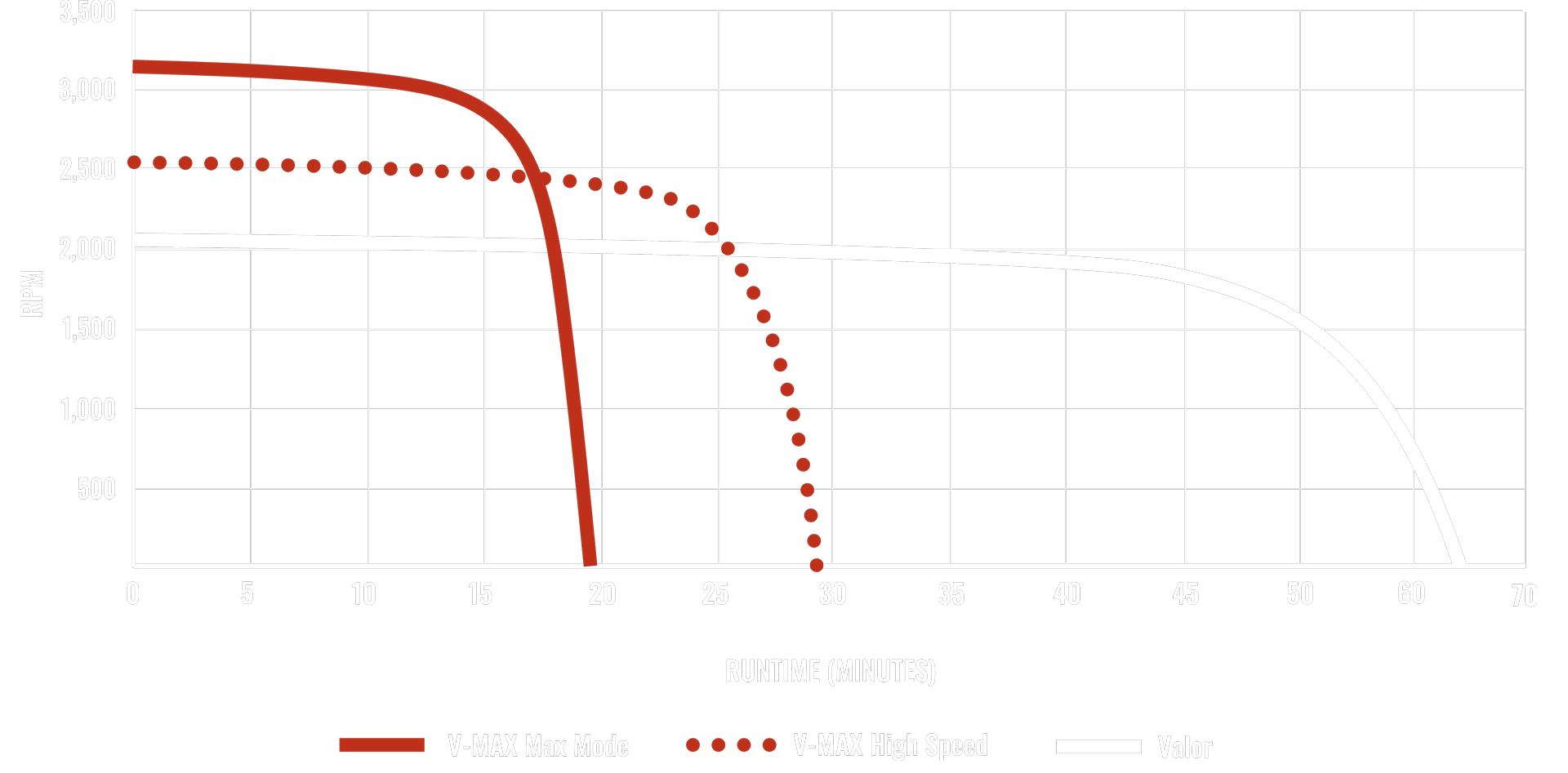

| V-MAX RUNTIMES | BH05** | BH09** |
|---|---|---|
| Amp Hours | 5Ah | 9Ah |
| High-Speed Runtime | 16 min | 28 min |
| MAX Mode Runtime | 11 min | 19 min |
| Rehab Runtime | 5+ hours | 6+ hours |
*Batteries required in pairs. **120-240V AC operation is standard (with optional delete). Delete -SP from model to remove standard shore power. AC (shore power needed to run the fan = 1 kW. Conservative run times are based on humidity, temperature, battery condition with a pair of batteries inserted.
Use only batteries' proprietary charging equipment to charge batteries. 120-240V AC operation is standard (with optional delete). Delete -SP from model to remove standard shore power.AC (shore power needed to run the fan = 1 kW. Conservative run times are based on humidity, temperature, battery condition with a pair of batteries inserted.
**The VM16-BH, VM18-BH and VM20-BH are sold exclusively through the HURST dealer network. HURST®, EWXT/E3™ and Jaws of Life® are trademarks of Hurst Jaws of Life, Inc Used. Under license.
| Charger included in HURST system Pick either/or: | Dead battery fully charged in: |
|---|---|
| APLK Battery Pack 25.2V / 9.0Ah Li-Ion 226,8 7S3P | 150 min* |
| APLK Battery Pack 25.2V / 5.0Ah Li-Ion 126 Wh 7S2P | 100 min* |
* Charge time depends on several factors, such as: Discharge state of the battery, ambient temperature during charging, temperature of the battery pack, age of the battery pack, table below shows the average charging times (at a temperature between 64 º F and 75º F [18º C and 24º C ], when the battery is discharged (undervoltage shut down is reached), or if the discharged battery was stored for a longer period of time, charging time will be extended of approx. 1 hour. The charger starts the charging process in these mentioned cases with a lower charging current, in order to preserve the life span of the battery.
THE MOST COMPACT FAN TO EVER JOIN THE HURST RESCUE TOOLS LINEUP
Scroll mouse or click above to rotate product.
1
Compact, Roll-Cage Aluminum Frame:
Features one of the most compact, lightweight PPV designs
2
Fold-Down Ergonomic Handle:
Folds into the frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
3
Flat-Proof Rubber Tires:
Highly maneuverable without lifting the fan; easy to deploy by the smallest firefighters.
4
180-Degree Tilt:
Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere
5
Scratch-Resistant Stair Skid Plates:
Provides ease of movement in high-rise response.
6
Hot Swappable HURST EWXT/E3 IP 58/Battery IP 68 Batteries:
Swaps within 5 seconds; provides up to 60 minutes of max airflow (or 30 minutes per battery), depending on battery selection; optional 120-240V AC operation is available upon request
7
Polymer Blade:
Minimizes weight; Super Vac’s single-piece cast aluminum blade is available by request
8
Precision-Spun Steel Shroud with StreamShaper Guard:
Allows flexible setback; Air Cone Guard is available by request
See the difference >
U.S. Patent No. 11,131,321 and 11795970 and Patents Pending.
180º of Separation
For attic attacks
For positive tilt attacks
Storage angle
For negative tilt attacks
For manhole attacks
VALOR HURST Battery Fan OptIONS
Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.
| VALOR MODELS | SIZE | WEIGHT [without Batteries and Shore Power] | DIMENSIONS HxWxD | MOTOR | RUNTIME [At Max Airflow] | SETBACK FOR OUTPUT RATING | ANGLE FOR OUTPUT RATING | AMCA 240-22 CERTIFIED OUTPUT |
|---|---|---|---|---|---|---|---|---|
 V16-BH-SP-WH | 16" | 54 lbs 24 kg | 24.25″ x 23.75″ x 12.25″ 615mm x 584mm x 304mm | Variable-Speed DC With Standard 120-240V AC | 5.0Ah (2) - 35 minutes 9.0Ah (2) - 62 minutes | 15 ft 4.6m | 10° | 7,879 cfm** 13,387 cmh |
 V18-BH-SP | 18" | 60 lbs 25 kg | 25.50″ x 26″ x 12.25″ 650mm x 660mm x 315mm | Variable-Speed DC With Standard 120-240V AC | 5.0Ah (2) - 37 minutes 9.0Ah (2) - 61 minutes | 15 ft 4.6m | 10° | 8,397 cfm** 14,267 cmh |
 V20-BH-SP | 20" | 64 lbs 30 kg | 28.25″ x 28.75″ x 12.5″ 720mm x 730mm x 320mm | Variable-Speed DC With Standard 120-240V AC | 5.0Ah (2) - 35 minutes 9.0Ah (2) - 63 minutes | 15 ft 4.6m | 10° | 9,413 cfm** 15,993 cmh |
**CFM based on comparable AMCA 240-22 testing procedures. *Runtimes vary based on selected battery.
Saddle bag design is not available on V16-BH-SP.
The V16-BH, V18-BH and V20-BH are sold exclusively through the HURST dealer network. HURST®, EWXT/E3™ and Jaws of Life® are trademarks of Hurst Jaws of Life, Inc Used. Under license.
Use only batteries' proprietary charging equipment to charge batteries. 120-240V AC operation is standard (with optional delete). Delete -SP from model to remove standard shore power.AC (shore power needed to run the fan = 1 kW. Conservative run times are based on humidity, temperature, battery condition with a pair of batteries inserted.
| Charger included in HURST system Pick either/or: | Dead battery fully charged in: |
|---|---|
| APLK Battery Pack 25.2V / 9.0Ah Li-Ion 226,8 7S3P | 150 min* |
| APLK Battery Pack 25.2V / 5.0Ah Li-Ion 126 Wh 7S2P | 100 min* |
* Charge time depends on several factors, such as: Discharge state of the battery, ambient temperature during charging, temperature of the battery pack, age of the battery pack, table below shows the average charging times (at a temperature between 64 º F and 75º F [18º C and 24º C ], when the battery is discharged (undervoltage shut down is reached), or if the discharged battery was stored for a longer period of time, charging time will be extended of approx. 1 hour. The charger starts the charging process in these mentioned cases with a lower charging current, in order to preserve the life span of the battery.
