SUPER VAC’S DEWALT® BATTERY-POWERED FANS

THE MOST VERSATILE BATTERY FAN

COMPATIBLE WITH DEWALT® FLEXVOLT® LITHIUM ION BATTERIES

Your battery arsenal just grew! Super Vac’s lineup of DeWalt battery-powered fans includes our lightweight 16” variable-speed fan and Super Vac’s easy-to-maneuver 18” DeWalt battery fan and our all-new powerful 20" battery fan addition. All work with dual 9ah or 12ah DeWalt FLEXVOLT batteries — the same batteries powering many of the shoring, extrication and forcible entry tools found on today’s fire ground, making this one of the best battery fans on the market. In fact, to see just how compatible our fan truly is, check out these FLEXVOLT Fire Rescue Kits and this array of DeWalt-powered AMKUS Rescue Tools.


DESIGNED FOR VERSATILITY

VIEW 360º 16" SADDLE DESIGN
VIEW 360º ROLL-CAGE DESIGN

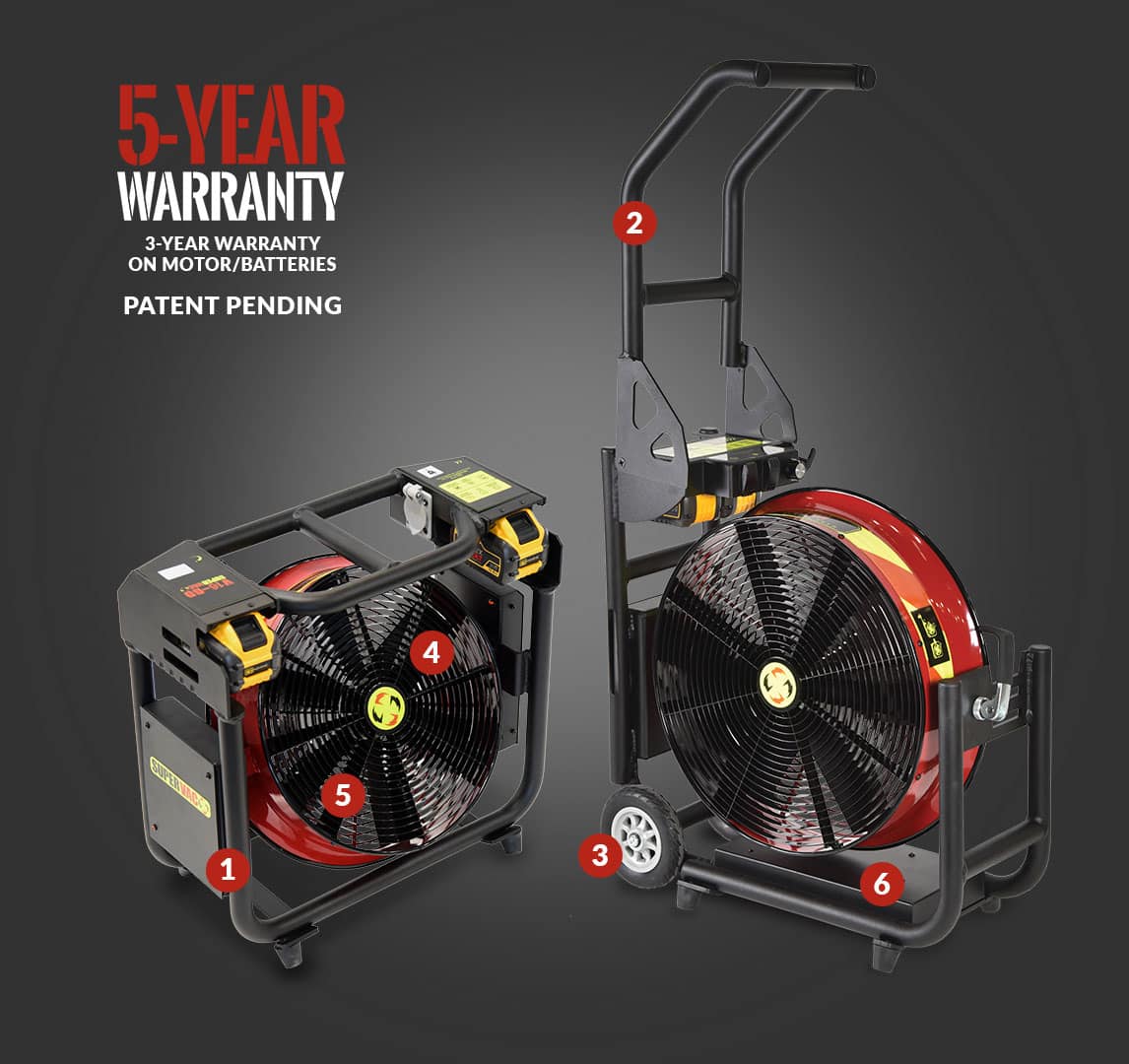

1


Compact, Roll-Cage Aluminum Frame:

Features one of the most compact, lightweight PPV designs

2


Curved Handle:

Folds into the frame for compact storage; curved design provides higher grip for better ergonomics

3


Flat-Proof Rubber Tires with
Skid Plates:

Creates a highly maneuverable fan, even on stairs; easy for all firefighters to position

4

Polymer Blade:

Minimizes weight; Super Vac's single-piece cast aluminum blade is available by request

5

Stream Shaper Guard:

Allows flexible setback; Air Cone Guard is available by request. See the difference >

6

Standard Shore Power:

120-240V AC operation turns your DeWalt cordless fan into an electric-powered fan for even more versatility. Note: Shore power does not charge batteries.

7

180-Degree Tilt:

Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere

8

DeWalt FLEXVOLT Lithium Ion  Batteries:

Provides up to 40 minutes of max airflow, depending on battery selection; 120-240V AC operation is standard  (with optional delete).

9

LED Light:

Provides light for firefighters and assists seeing the fan in smokey room.

180º of Separation



For attic attacks



For positive tilt attacks



Storage angle



For negative tilt attacks



For manhole attacks


AMCA CERTIFIED

UP TO 40 MIN. OF RUN TIME**


Unlike other brands, we back our numbers with true third-party testing. The ratings below are based on tests in accordance with the Air Movement Control Association (AMCA Standard 240). You’ll find this unit proudly listed under positive Pressure Ventilator at bit.ly/PPV-AMCA-certification.

*Cfm based on V18-BD model   ** Run time based on battery selection

DeWALT® Battery Fan Options


Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.


× How to use

Ventilation Duration Estimator

Select unit of measure:



Scroll right for full chart.


ModelsWeight
[w/Batteries
and Shore Power]
FAN SIZE HxWxDMotorRPMSetback
For Output Rating
Angle
For Output Rating
AMCA 240-22
CERTIFIED OUTPUT

V16-BD-SP
V16-BD-SP

45 lbs
20 kg
16" Blade:
22.75” x 23.50″ x 12″
580mm x 595mm x 305mm
Variable-Speed DC2,10015 ft
4.6m
10°8,127 cfm*
13,808 cmh
V16-BD-SP-WH
V16-BD-SP-WH
53 lbs
24 kg
16" Blade:
24.25” x 23.75″ x 12.25″
615mm x 605mm x 315mm
Variable-Speed DC2,10015 ft
4.6m
10°8,127 cfm*
13,808 cmh
V18-BD-SP
V18-BD-SP
58 lbs
26 kg
18″ Blade:
25.75″ x 25.75″ x 12.25″
655mm x 655mm x 315mm
Variable-Speed DC1,82815 ft
4.6m
10°8,489 cfm*
14,423 cmh
V20-BD-SP
V20-BD-SP
63 lbs
28 kg
20″ Blade:
28.25″ x 28.75″ x 12.5″
720mm x 730mm x 320mm
Variable-Speed DC2,01815 ft
4.6m
10°9,456 cfm*
16,066 cmh

*CFM based on AMCA's newest Standard 240-22 PPV Air Performance test results.


Scroll right for full chart.


Battery OptionsBattery TypeRun Time At Max Airflow

Standard Battery

DEWALT® FLEXVOLT® 9Ah (2)40 minutes
(with built-in battery gauge)

Optional Battery
DEWALT® FLEXVOLT® 12Ah (2)56 minutes
(with built-in battery gauge)

Optional Battery
DEWALT® FLEXVOLT® 15Ah (2)66 minutes
(with built-in battery gauge)

*Runtimes vary based on selected battery.  **Batteries required in pairs. ***120-240V AC operation is standard (with optional delete)


Scroll right for full chart.


Charger Included*
Pick either/or:
Charge speedDead battery fully charged in:
115V ACFast Charger1.5 hours
12V DCRegular Charger4.5 hours

*Use only official DEWALT® charging products to charge the FLEXVOLT® batteries.
