SUPER VAC’S MAKITA®
BATTERY-POWERED FANS
YOUR MAKITA BATTERY TOOL
ARSENAL JUST GREW
THE INDUSTY’S BEST BATTERY FAN, COMPATIBLE WITH MAKITA XGT 40V BATTERIES
CHOOSE YOUR SERIES: OUR NEW V-MAX oR ORIGINAL VALOR Battery FANS
V-MAX
V-MAX SERIES BATTERY FAN
Super Vac’s newest battery-powered PPV featuring "MAX MODE" which supplies an extra burst of air with the push of a button, increasing airflow output up to 40% more than the original valor series.
- Up to 30% increase in output cfm/cmh on High Speed**
- Up to 40% increase in output cfm/cmh in MAX Mode**
- Egonomic handle and 180º tilt
- Available sizes: 16", 18" and 20"
VALOR
VALOR SERIES BATTERY FAN
Super Vac’s original compact, lightweight battery-powered PPV designed to work with your existing battery-powered tool platform.
- Lightweight and Compact
- Egonomic handle and 180º tilt
- Up to 9,773 cfm/16,604 cmh output**
- Up to 67 min. run time*
- Available sizes: 16", 18" and 20"
WHAT'S THE DIFFERENCE?
Super Vac's new battery-powered V-MAX PPV delivers airflows comparable to gas-powered ventilators with a 30% airflow output increase on high speed, and 40% increase in our new "Max Mode" setting.

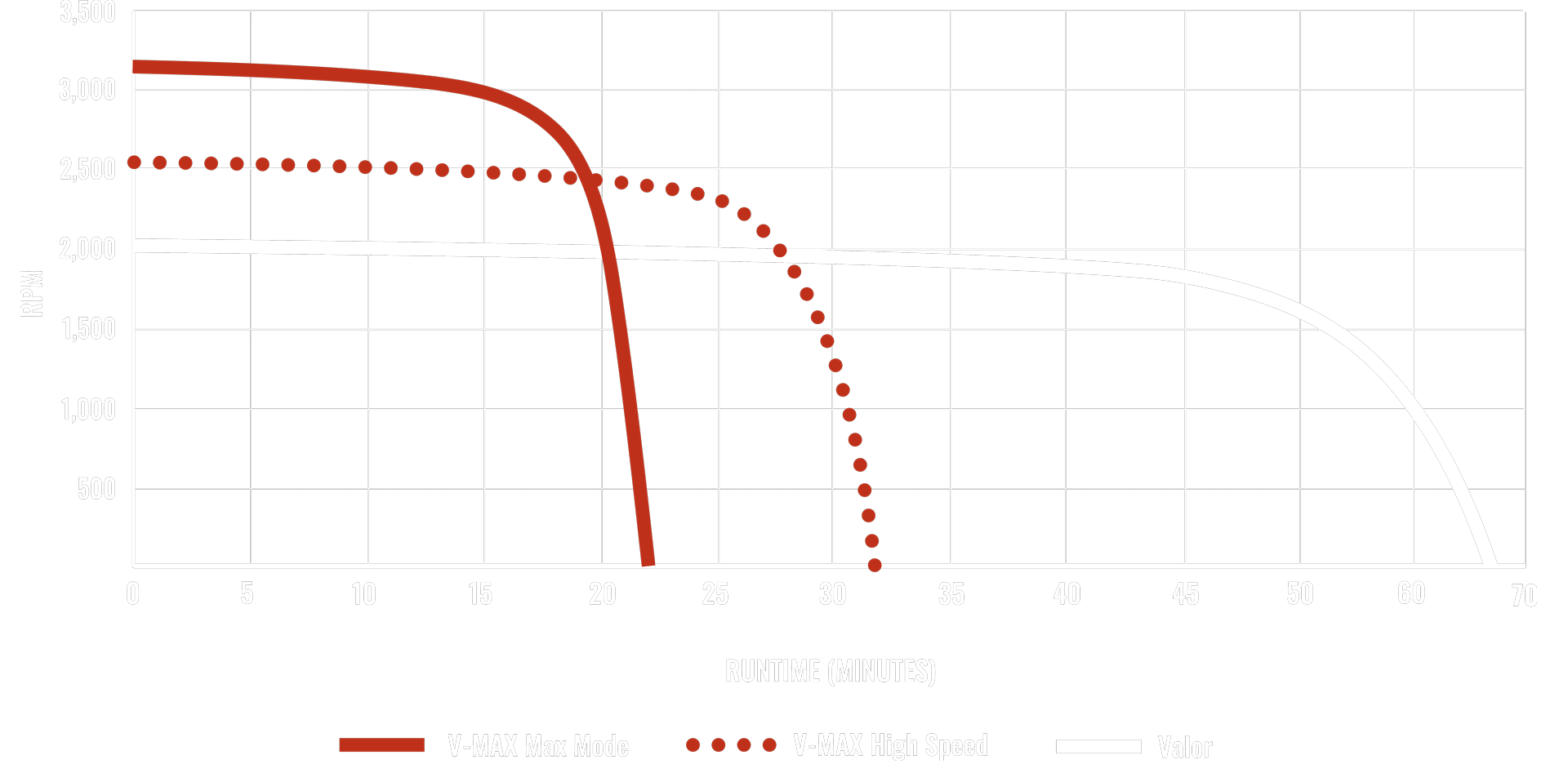

Super Vac's new V-MAX edition features higher RPMs in both High Speed and Max Mode settings, producing more CFM/CMH output in less time versus our original battery-powered Valor series which features longer runtimes at lower CFM/CMH outputs.
*Runtimes based on dual Makita XGT 8.0 Ah Batteries
THE ALL NEW V-MAX SERIES
THE MAX-POWER BATTERY-POWERED FAN
THE battery-powered FAN with output numbers of a gas-powered fan
Scroll mouse or click above to rotate product.
1
MAX Mode power button:
Output CFM/CMH increases up to 40% more at the push-of-a-button.
2
Compact, Roll-Cage Aluminum Frame:
Features a tough yet lightweight aluminum frame to protect key components while providing a compact, lightweight design.
3
Fold-Down Ergonomic Handle:
Folds into the frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
4
Flat-Proof Rubber Tires:
Highly maneuverable, and all without lifting the fan; easy to deploy by the
smallest firefighters.
5
180-Degree Tilt:
Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere.
6
Scratch-Resistant Stair Skid Plates:
Provides ease of movement in high-rise response.
7
Makita 4.0Ah or 5.0Ah XGT batteries
Provides up to 32 minutes of max airflow on High-Speed and 22 minutes in Max Mode, depending on battery selection; 120-240V AC operation is standard (with optional delete).
8
Polymer Blade:
Minimizes weight; Super Vac’s single-piece cast aluminum blade is available by request.
9
Precision-Spun Steel Shroud with StreamShaper Guard:
Allows flexible setback; Air Cone Guard is available by request.
See the difference >
10
Standard Shore Power:
120-240V AC operation turns your DeWalt cordless fan into an electric-powered fan for even more versatility. Note: Shore power does not charge batteries.
11
LED Light:
Provides light for firefighters and assists seeing the fan in smokey room.
U.S. Patent No. 11,131,321, 11,795,970 and Patents Pending.
3rd Party Certified
Super Vac is committed to providing certified, third party validated data, making our fans some of the most reliable, globally verified ventilators on the market.
AMCA 240-22 Certified
Tested to DIN Standards
CE Certified
EMI Compliant

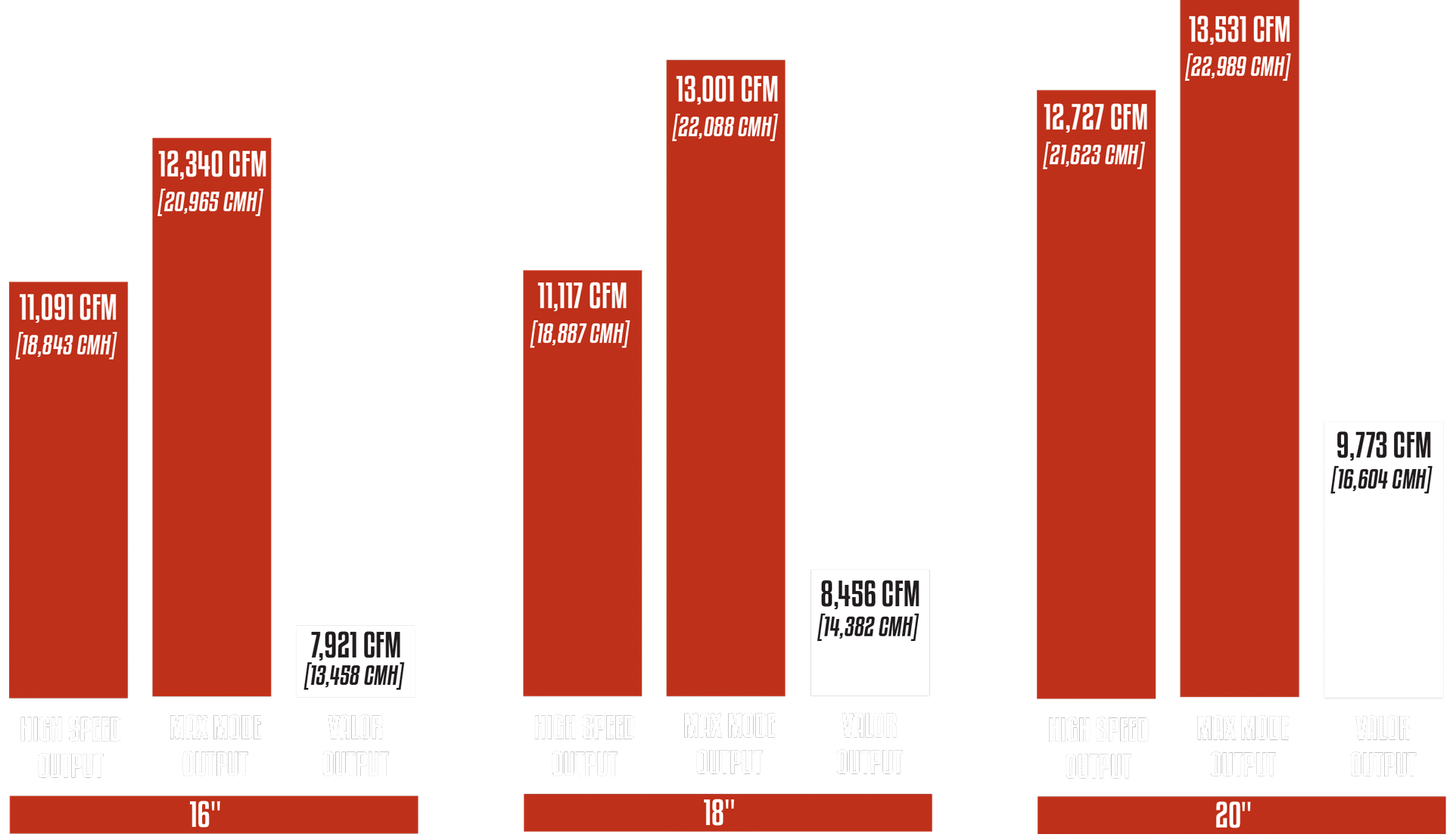

V-MAX MAKITA BATTERY FAN OPTIONS
Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.
| V-MAX MODELS | SIZE | WEIGHT (WITHOUT BATTERIES) | Dimensions HxWxD | MOTOR | SETBACK FOR OUTPUT RATING | ANGLE FOR OUTPUT RATING | AMCA 240-22 CERTIFIED HIGH-SPEED OUTPUT | AMCA 240-22 CERTIFIED MAX MODE OUTPUT |
|---|---|---|---|---|---|---|---|---|
 VM16-BK-SP | 16" | 51 lbs 23 kg | 24.25″ x 23.75″ x 12.25″ 615mm x 605mm x 310mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 11,091 cfm* 18,843 cmh | 12,340 cfm* 20,965 cmh |
 VM18-BK-SP | 18" | 58 lbs 26 kg | 22.50″ x 26″ x 12.25″ 650mm x 660mm x 315mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 11,117 cfm* 18,887 cmh | 13,001 cfm* 22,088 cmh |
 VM20-BK-SP | 20" | 63 lbs 29 kg | 28.25″ x 28.75″ x 12.5″ 720mm x 730mm x 320mm | Brushless Variable-Speed DC with 120-240V AC, 50/60Hz | 15 ft 4.6 m | 10º | 12,727 cfm* 21,623 cmh | 13,531 cfm* 22,989 cmh |
MAKITA XGT BATTERY OPTIONS
| V-MAX RUNTIMES | BK04-M2 | BK05-M2 | BK08-M2 |
|---|---|---|---|
| Amp Hours | 4.0Ah | 5.0Ah | 8.0Ah |
| High-Speed Runtime | 16 min | 20 min | 32 min |
| MAX Mode Runtime | 10 min | 13 min | 22 min |
| Rehab Runtime | 5+ hours | 7+ hours | 11+ hours |
*Batteries required in pairs. **120-240V AC operation is standard (with optional delete). Delete -SP from model to remove standard shore power. AC (shore power needed to run the fan = 1 kW. Conservative run times are based on humidity, temperature, battery condition with a pair of batteries inserted.
NOTE: Battery fans are NOT compatible with DeWALT Powerstack™ batteries.
| Charger included in Makita system Pick either/or: | Dead battery fully charged in: |
|---|---|
| 40V max XGT® Rapid Optimum Charger | 45 min* (4.0 Ah Battery) 50 min* (5.0 Ah Battery) 70 min* (8.0 Ah Battery) |
*Use only official DEWALT® charging products to charge the FLEXVOLT® batteries.
180º of Separation
For attic attacks
For positive tilt attacks
Storage angle
For negative tilt attacks
For manhole attacks
THE MOST COMPACT FAN TO EVER JOIN THE Makita POWER-TOOLS LINEUP
Scroll mouse or click above to rotate product.
1
Compact, Roll-Cage Aluminum Frame:
Features one of the most compact, lightweight PPV designs
2
Curved Handle:
Folds into the frame for compact storage; curved design provides higher grip for better ergonomics
3
Flat-Proof Rubber Tires with Skid Plates:
Creates a highly maneuverable fan, even on stairs; easy for all firefighters to position
4
Polymer Blade:
Minimizes weight; Super Vac's single-piece cast aluminum blade is available by request
5
Stream Shaper Guard:
Allows flexible setback; Air Cone Guard is available by request
See the difference >
6
Standard Shore Power
120-240V AC operation turns your Makita cordless fan into an electric-powered fan for even more versatility. Note: Shore power does not charge batteries.
7
180-Degree Tilt:
Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere
8
Makita 4.0Ah or 5.0Ah XGT batteries
Swaps within 5 seconds; provides up to 50 minutes of max airflow, depending on battery selection; optional 120-240V AC operation is available upon request
9
LED Light:
Provides light for firefighters and assists seeing the fan in smokey room.
U.S. Patent No. 11,131,321 and 11,795,970 and Patents Pending.
AMCA CERTIFIED
For more than 100 years, AMCA has been a recognized authority for the development of standards and measurement of air movement. At Super Vac we're proud to back our numbers with AMCA-certified verification.
MAKITA Battery Fan OptIONS
Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.
| VALOR MODELS | SIZE | WEIGHT [without Batteries and Shore Power] | DIMENSIONS HxWxD | MOTOR | RUNTIME [At Max Airflow] | SETBACK FOR OUTPUT RATING | ANGLE FOR OUTPUT RATING | AMCA 240-22 CERTIFIED OUTPUT |
|---|---|---|---|---|---|---|---|---|
 V16-BK-SP | 16" | 46 lbs 21 kg | 22.75″ x 23″ x 12″ 580mm x 585mm x 305mm | Variable-Speed DC With Standard 120-240V AC | 4.0Ah (2) - 32 minutes 5.0Ah (2) - 39 minutes | 15 ft 4.6m | 10° | 7,921 cfm 13,458 cmh |
 V16-BK-SP-WH | 16" | 54 lbs 25 kg | 24.25″ x 23.75″ x 12.25″ 615mm x 584mm x 304mm | Variable-Speed DC With Standard 120-240V AC | 4.0Ah (2) - 32 minutes 5.0Ah (2) - 39 minutes 8.0Ah (2) - 62 minutes | 15 ft 4.6m | 10° | 7,921 cfm 13,458 cmh |
 V18-BK-SP | 18" | 56 lbs 25 kg | 25.50″ x 26″ x 12.25″ 650mm x 660mm x 315mm | Variable-Speed DC With Standard 120-240V AC | 4.0Ah (2) - 36 minutes 5.0Ah (2) - 45 minutes 8.0Ah (2) - 66 minutes | 15 ft 4.6m | 10° | 8,456 cfm 14,382 cmh |
![](/wp-content/uploads/2022/03/Makita_20_Closed_Front.png") V20-BK-SP | 20" | 61 lbs 28 kg | 28.25″ x 28.75″ x 12.5″ 720mm x 730mm x 320mm | Variable-Speed DC With Standard 120-240V AC | 4.0Ah (2) - 35 minutes 5.0Ah (2) - 45 minutes 8.0Ah (2) - 70 minutes | 15 ft 4.6m | 10° | 9,773 cfm 16,604 cmh |
***CFM based on comparable AMCA 240-22 testing procedures. Makita XGT 8.0 Ah battery available for V16-BK-SP-WH model but not for V16-BK-SP. Use only batteries' proprietary charging equipment to charge batteries. 120-240V AC operation is standard (with optional delete). Delete -SP from model to remove standard shore power.AC (shore power needed to run the fan = 1 kW. Conservative run times are based on humidity, temperature, battery condition with a pair of batteries inserted.
| Charger included in Makita system Pick either/or: | Dead battery fully charged in: |
|---|---|
| 40V max XGT® Rapid Optimum Charger | 45 min* (4.0 Ah Battery) 50 min* (5.0 Ah Battery) 70 min* (8.0 Ah Battery) |
BATTERY FAN ACCESSORIES
Available for MAKITA BATTERY FANS
