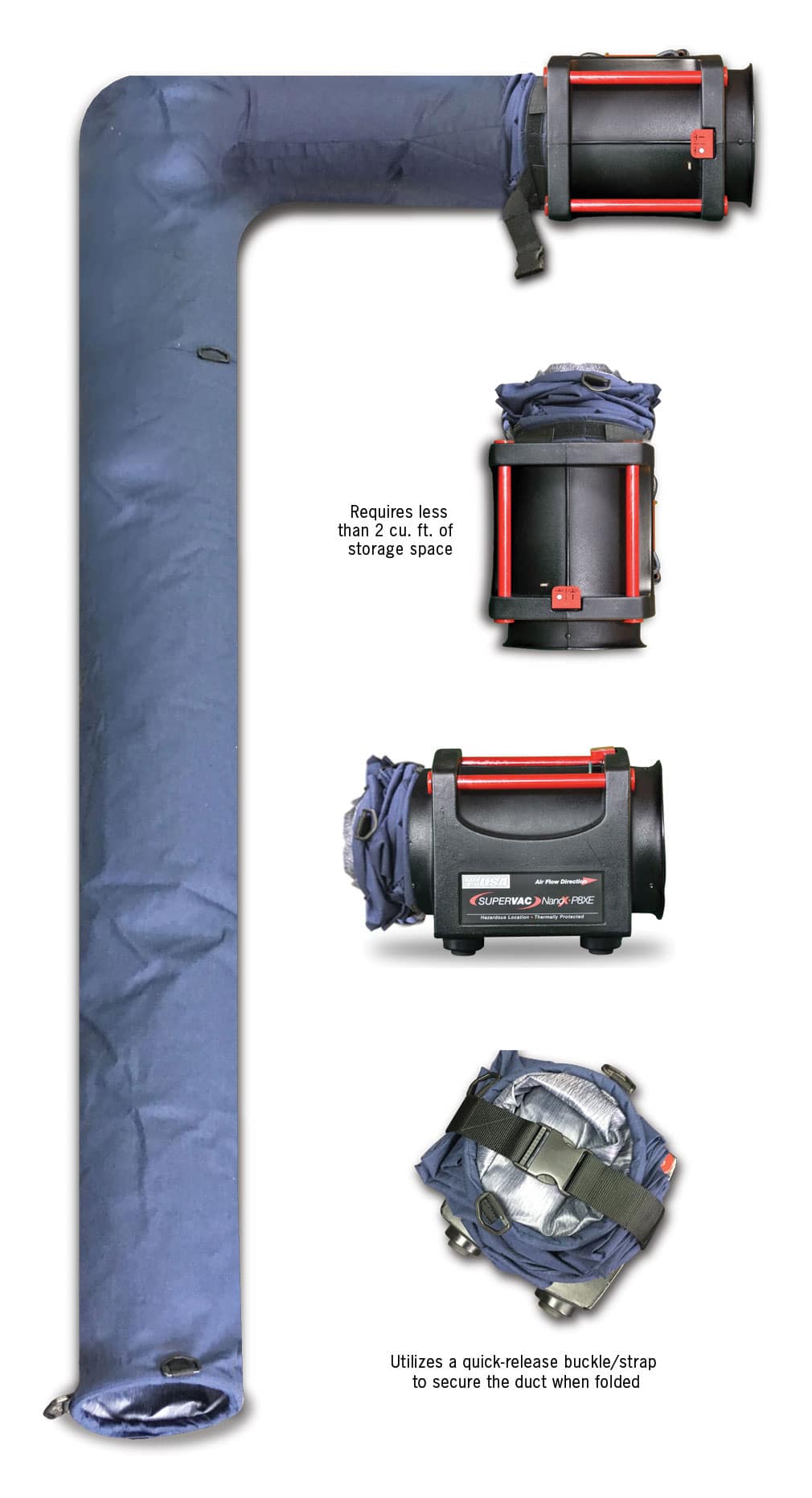

Pictured: Model P8S standard location fan with Model LFR-BF08-3×8 ballistic FR/AS fabric “L” duct

LFR-BF DUCT

THE MOST COMPACT DUCT FOR CONFINED-SPACE VENTILATION

Pictured: Model P8S standard location fan with Model LFR-BF08-3×8 ballistic FR/AS fabric “L” duct

LFR-BF DUCT

THE MOST COMPACT DUCT FOR CONFINED-SPACE VENTILATION

Featuring an all–new inherently arc and flame resistant ballistic fabric, Super Vac’s Nano Series L-shaped duct delivers one of the safest, most compact hoses. This unique UL Certified fabric is held open by air pressure created by the fan. The duct folds down to less than half a cubic foot, weighs just 3 lbs. and allows crews to store both the Nano and duct in a compartment without disconnecting.

Storage

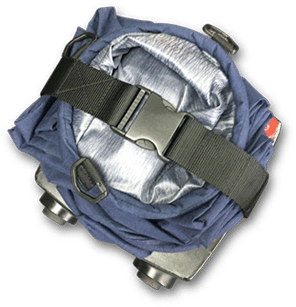

• Quick-release buckle to quickly deploy and store
• Requires less than 2 cu. ft. (0.05 m3) of storage space for fan and duct

Design

• Maximizes airflow and allows vertical leg to adjust to different lengths
• Allows forced ventilation without eliminating egress locations

Elbow

• 90-degree, sewn-in elbow

Material

• Silver Bullet Fire Resistant material, made from meta-aramid, ballistic para-aramid and 2% anti-static fiber*
• Arc resistant and UL certified to NFPA 2112

* Fabric is not conductive or static dissipating.

Model Diameter Length
LFR-BF08-3×8 9″ – 229mm 3′ + 8′ — 0.91m + 2.44m

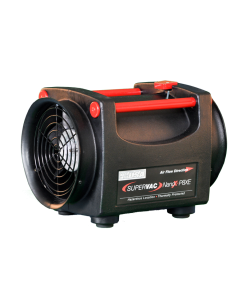

Pictured: Model P8XE hazardous location fan with Model LFR-BF08-3×8 ballistic FR/AS fabric “L” duct

 THE SUPER VAC NANO FAN   THE LFR-BF’S PERFECT PARTNER

The Nano is the most compact confined space fan on the market.  At 8″, these fans are designed to be extremely powerful, portable and be used for negative and positive pressure. Available with a 1/3 HP single-speed electric motor (Model P8S) or a 1/3 HP hazardous location motor (Model P8XE).

Model Weight Motor Output
P8S 20 lbs – 9 kg 1/3 Hp, TEAO (Totally Enclosed Air Over), 60/50hz, 115/230V 1,037 cfm – 1,760 cmh
P8XE 22 lbs – 10 kg 1/3 Hp, hazardous location rated for Class 1 Group D, 60/50hz, 115/230V 1,037 cfm – 1,760 cmh

Featuring an all–new inherently arc and flame resistant ballistic fabric, Super Vac’s Nano Series L-shaped duct delivers one of the safest, most compact hoses. This unique UL Certified fabric is held open by air pressure created by the fan. The duct folds down to less than half a cubic foot, weighs just 3 lbs. and allows crews to store both the Nano and duct in a compartment without disconnecting.

Storage

• Quick-release buckle to quickly deploy and store
• Requires less than 2 cu. ft. (0.05 m3) of storage space for fan and duct

Design

• Maximizes airflow and allows vertical leg to adjust to different lengths
• Allows forced ventilation without eliminating egress locations

Elbow

• 90-degree, sewn-in elbow

Material

• Silver Bullet Fire Resistant material, made from meta-aramid, ballistic para-aramid and 2% anti-static fiber*
• Arc resistant and UL certified to NFPA 2112

* Fabric is not conductive or static dissipating.

Model Diameter Length
LFR-BF08-3×9 9″ – 229mm 3′ + 8′ — 0.91m + 2.44m

Pictured: Model P8XE hazardous location fan with Model LFR-BF08-3×8 ballistic FR/AS fabric “L” duct

   THE SUPER VAC NANO FAN     THE LFR-BF’S PERFECT PARTNER

The Nano is the most compact confined space fan on the market.  At 8″, these fans are designed to be extremely powerful, portable and be used for negative and positive pressure. Available with a 1/3 HP single-speed electric motor (Model P8S) or a 1/3 HP hazardous location motor (Model P8XE).

Model Weight Motor Output
P8S 20 lbs – 9 kg 1/3 Hp, TEAO (Totally Enclosed Air Over), 60/50hz, 115/230V 1,037 cfm – 1,760 cmh
P8XE 22 lbs – 10 kg 1/3 Hp, hazardous location rated for Class 1 Group D, 60/50hz, 115/230V 1,037 cfm – 1,760 cmh

Featuring an all–new inherently arc and flame resistant ballistic fabric, Super Vac’s Nano Series L-shaped duct delivers one of the safest, most compact hoses. This unique UL Certified fabric is held open by air pressure created by the fan. The duct folds down to less than half a cubic foot, weighs just 3 lbs. and allows crews to store both the Nano and duct in a compartment without disconnecting.

Storage

• Quick-release buckle to quickly deploy and store
• Requires less than 2 cu. ft. (0.05 m3) of storage space for fan and duct

Design

• Maximizes airflow and allows vertical leg to adjust to different lengths
• Allows forced ventilation without eliminating egress locations

Elbow

• 90-degree, sewn-in elbow

Material

• Silver Bullet Fire Resistant material, made from meta-aramid, ballistic para-aramid and 2% anti-static fiber*
• Arc resistant and UL certified to NFPA 2112

* Fabric is not conductive or static dissipating.

Model Diameter Length
8x3x8LFR 8″
203mm
3′ + 8′
0.91m + 2.44m

Pictured: Model P8XE hazardous location fan with Model LFR-BF08-3×8 ballistic FR/AS fabric “L” duct

 THE SUPER VAC NANO FAN

THE LFR-BF’s PERFECT PARTNER

The Nano is the most compact confined space fan on the market.  At 8″, these fans are designed to be extremely powerful, portable and be used for negative and positive pressure. Available with a 1/3 HP single-speed electric motor (Model P8S) or a 1/3 HP hazardous location motor (Model P8XE).

Model Weight Motor Output
P8S 20 lbs
9 kg
1/3 Hp, TEAO (Totally Enclosed Air Over), 60/50hz, 115/230V 1,037 cfm
1,760 cmh
Model Weight Motor Output
P8XE 22 lbs
10 kg
1/3 Hp, hazardous location rated for Class 1 Group D, 60/50hz, 115/230V 1,037 cfm
1,760 cmh

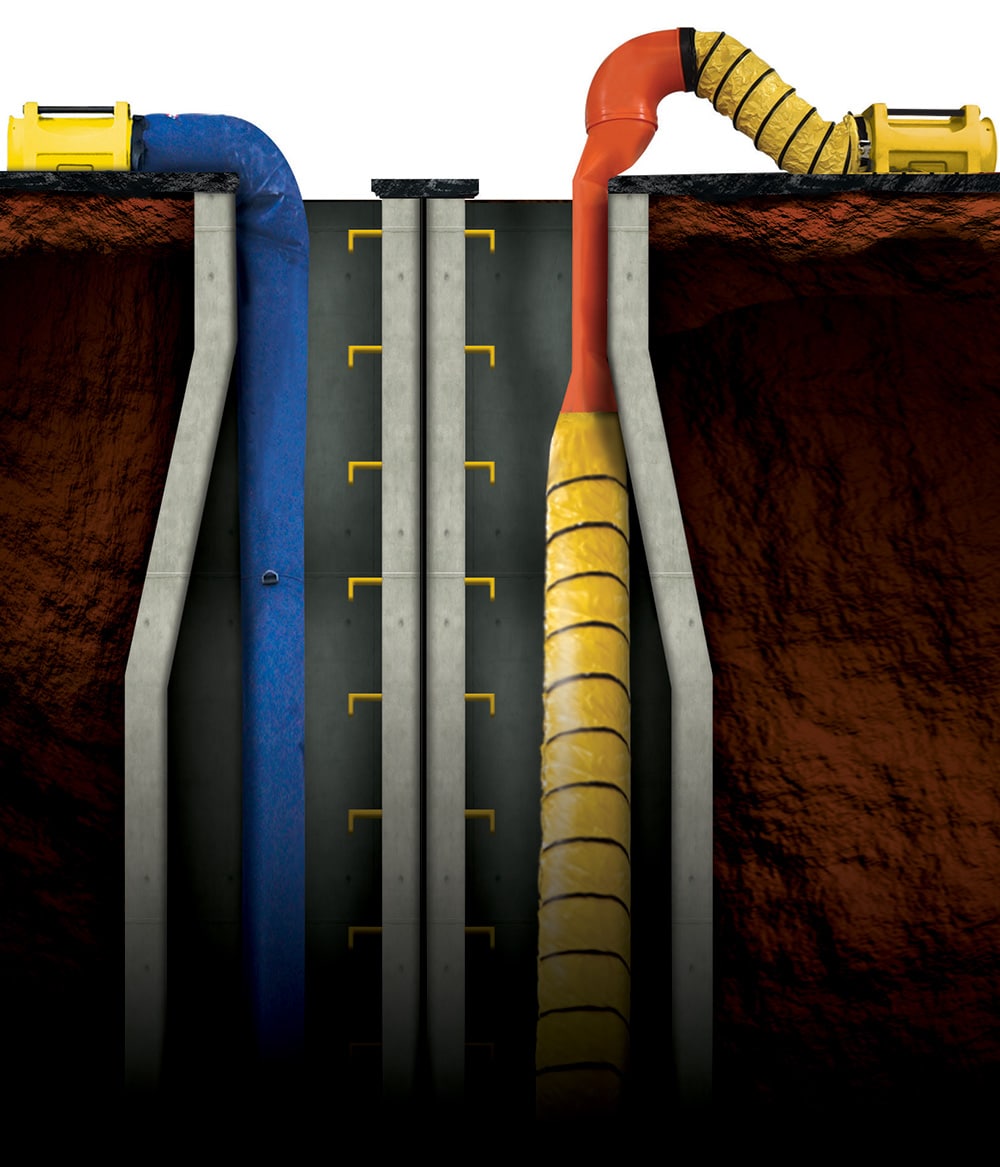

DARE TO COMPARE: SEE HOW THE LFR STACKS UP TO OTHER DESIGNS

 DARE TO COMPARE

SEE HOW THE LFR STACKS
UP TO OTHER DESIGNS

700 cfm VS 350 cfm

The Super Vac Nano produces an airflow of 1,037 cu. ft. per minute. Together, the Nano and the LFR duct have a 700 cfm output, two times the airflow of the saddle duct’s pinched design, which greatly hinders airflow.

The LFR’s unique material allows the vent to contour around the worker while moving through the confined space. The saddle vent helix duct is less forgiving.

The LFR connects directly to the fan using a built-in strap. Meanwhile, the saddle duct requires setup of multiple components. The manhole lid must be used during setup to keep these components from falling into the space.

The saddle duct components take up more storage space than the LFR duct.

700 cfm VS 350 cfm

The Super Vac Nano produces an airflow of 1,037 cu. ft. per minute. Together, the Nano and the LFR duct have a 700 cfm output, two times the airflow of the saddle duct’s pinched design, which greatly hinders airflow.

The LFR’s unique material allows the vent to contour around the worker while moving through the confined space. The saddle vent helix duct is less forgiving.

The LFR connects directly to the fan using a built-in strap. Meanwhile, the saddle duct requires setup of multiple components. The manhole lid must be used during setup to keep these components from falling into the space.

The saddle duct components take up more storage space than the LFR duct.

700 cfm VS 350 cfm

The Super Vac Nano produces an airflow of 1,037 cu. ft. per minute. Together, the Nano and the LFR duct have a 700 cfm output, two times the airflow of the saddle duct’s pinched design, which greatly hinders airflow.

The LFR’s unique material allows the vent to contour around the worker while moving through the confined space. The saddle vent helix duct is less forgiving.

The LFR connects directly to the fan using a built-in strap. Meanwhile, the saddle duct requires setup of multiple components. The manhole lid must be used during setup to keep these components from falling into the space.

The saddle duct components take up more storage space than the LFR duct.
