THE MOST VERSATILE BATTERY FAN HAS ARRIVED

THE MOST VERSATILE BATTERY FAN HAS ARRIVED

THE V18-BD WITH DEWALT LITHIUM ION BATTERY

THE V18-BD WITH DEWALT
LITHIUM ION BATTERY

YOUR BATTERY ARSENAL JUST GREW

Never in firefighter history has one fan worked with your department’s other battery-operated tools. Until now. The all-new Super Vac 18″ variable-speed battery fan, equipped with dual DeWalt batteries, is the most swappable PPV interface on the market. Finally, the industry can turn to a fan with a trusted battery name that pairs with Super Vac’s dependable history.

1. Curved Handle: Folds into the frame for compact storage; curved design provides higher grip for better ergonomics.


2. Compact, Roll-Cage Frame:
Features one of the most compact, lightweight designs among battery PPVs with its aluminum frame design.


3. Stream Shaper Guard:
Allows for flexible setback; Air Cone Guard is available by request


4. Polymer Blade:
Minimizes weight; Super Vac’s single-piece cast aluminum blade is available by request


5. Optional Shore Power:
120-240V AC operation is available upon request.


6. Standard Flat-Proof Rubber Tires:
Highly maneuverable, and all without lifting the fan; easy to deploy by the smallest firefighters.

*Weight is without shore power.

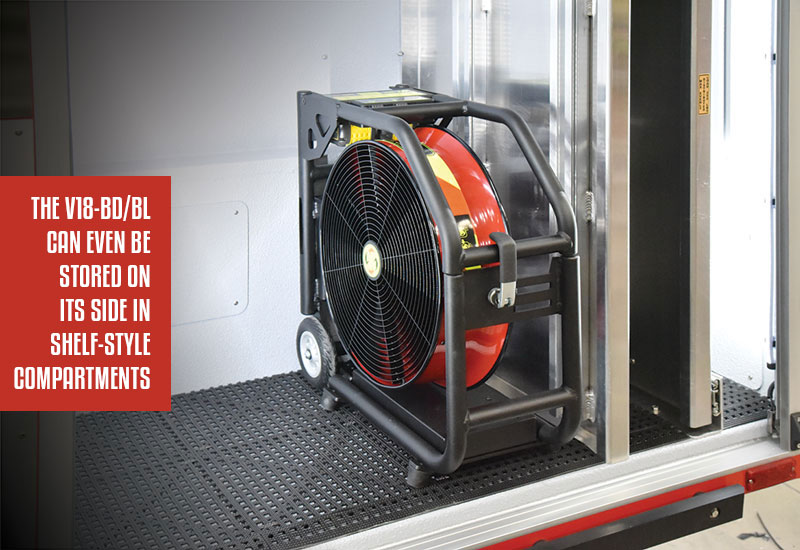

180°OF SEPARATION

At Super Vac, we have all the angles of attack covered — and then some. You won’t find another battery fan that offers 180 degrees of tilt like the ever-versatile V18-BD/BL. Just this one feature truly sets this battery fan apart from the others.

For attic attacks

For positive tilt attacks

Storage angle

For negative tilt attacks

For manhole attacks

COMPACT

FEATURING A NARROW DESIGN

AMCA CERTIFIED

UP TO 45 MINUTES OF RUN TIME*

Unlike other brands, we back our numbers with true third-party testing. The ratings below are based on tests in accordance with the Air Movement Control Association (AMCA Standard 240). You’ll find this unit proudly listed under positive Pressure Ventilator at bit.ly/PPV-AMCA-certification.

* Run time based on battery selection

Airflow VS Setback

18″ BLADES – H x W x D: 25.75″ x 25.75″ x 11.75″ – 654mm x 654mm x 298mm

18″ BLADES
H x W x D: 25.75″ x 25.75″ x 11.75″

654mm x 654mm x 298mm

Model Weight(w/Batteries) Motor Setback
For Output Rating
Angle
For Output Rating
Output
V18-BD 46 lbs
21 kg
Variable-Speed DC
with Optional 120-240V AC
15 ft
4.6m
10° 10,840 cfm
18,417 cmh

*AC (Shore Power) needed to run the fan = 1 kW

BATTERY OPTIONS

Standard Battery Run Time
At Max Airflow
DeWalt FLEXVOLT 9.0Ah (2)
(Compatible with all DeWalt
20/60/120V MAX Tools)
35 minutes
(With built-in battery gauge)
Optional Battery Run Time
At Max Airflow
DeWalt FLEXVOLT 12.0Ah (2)
(Compatible with all DeWalt
20/60/120V MAX Tools)
45 minutes
(With built-in battery gauge)

*Up to 45 minutes run time, depending on battery selection. 120V MAX is based on using 2 DEWALT 60V MAX*lithium-ion batteries combined. Optional 120-240V AC operation is available upon request.

***Batteries required in pairs.

Charger included in DeWalt system (pick either/or) Charge speed Dead battery fully charged in:
115 V AC Fast Charger 1.5 hours
12 V DC Regular Charger 4.5 hours

AVAILABLE ACCESSORIES

DeWalt FLEXVOLT Batteries, Chargers, Duct, Door Bar, Carry Strap, Mountain Mister, Running Board Mount and High Expansion Foam Adapter.

REQUEST INFORMATION

For more information, please complete the form and a regional sales manager will be in contact.

[]
1 Step 1
First Name
Last Nameyour full name
Company/Department
Title
Phone
Street Address
City
State/Territory
Postal Code
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
Download V18-BD Spec Sheet
Download Competitor Fan Comparison Table
Download Test Charts

OTHER BATTERY FANS

Model Size Weight Battery Output
V18b
18″ 95 lbs IonPac 2.0 8,699 CFM
718b
18″ 105 lbs IonPac 2.0 11,140 CFM
