718G4i-H

The 718G4i-H is an 18″, gas powered PPV set on the classic 7-Series frame.  A perfect combination of size and power for departments looking for an every day PPV fan in need of a quick set-up and not dependent on generators or electricity.

718G4i-H

718G4i-H Features

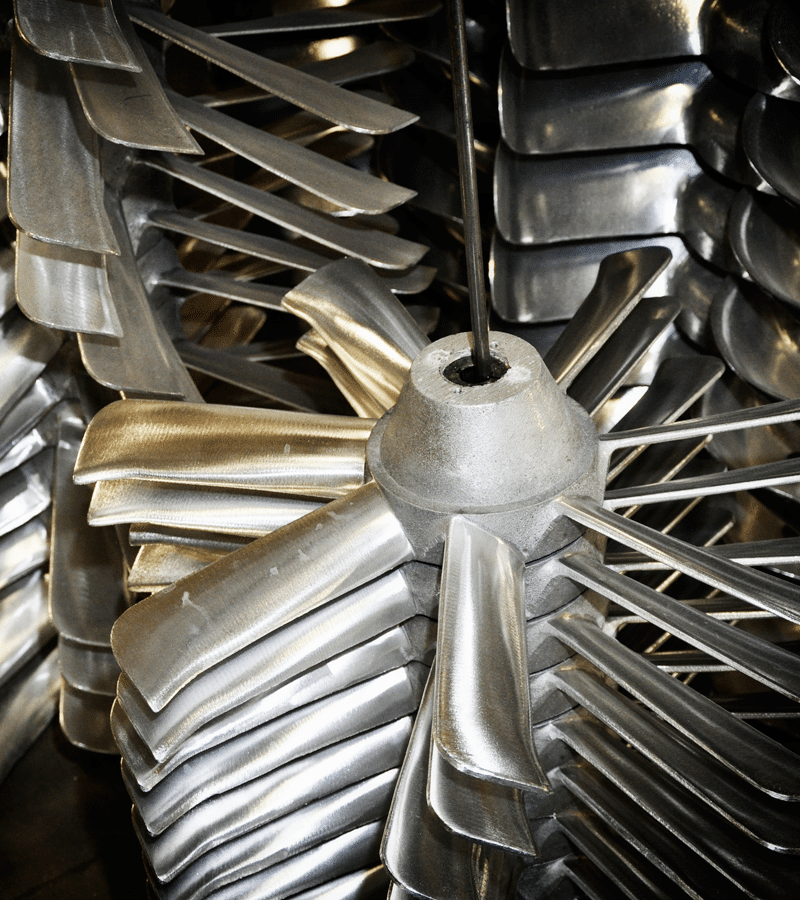

7-Point Cast Aluminum Blade – holds up better than plastic in high heat

Precision Spun Steel Shroud – durability with maximum airflow

Full Roll Cage Steel Frame – protects key components

Flat Proof Tires – heavy duty rubber, never flat, rolls up stairs and curbs

Step Brake – locks fan in place during use

4-Position Tilt Frame –  -10°, 0°, 10°, 20°

Air Cone Guard – classic design for maximum airflow, StreamShaper guard optional

Fold Down Handle – folds down within frame for storage, easy grip with heavy duty gloves

5 Year Warranty

718G4i-H Specs

Engine – Honda GX 200

HxWxD – 22″ x 23.5″ x 19.5″ – 559mm x 597mm x 495mm

Blade Diameter – 18″ – 457mm

Weight – 82 lbs – 37 kg

RPM – 3535

Set Back – 6 ft

Angle – 18°

Output – 15,590 cfm – 26,485 cmh
