V18-ES

Powered by a single-speed TEAO motor, this PPV electric fan provides unmatched durability in our most compact, powerful size — perfect for jurisdictions with a mixture of residential and commercial structures. Featuring a patent-pending frame design that is simple and intuitive to position on the fireground, the Valor series is engineered to ease the toughest ventilation challenges.

V18-ES Features

Full-Roll Cage Frame: Features a tough, tubular aluminum frame to protect key components; delivers a lightweight design (15% lighter than steel frames)

7-Position Tilt Frame with Step Pad: Provides positive/ negative angles; allows for fan placement on stairs; allows tall firefighters to easily move fan

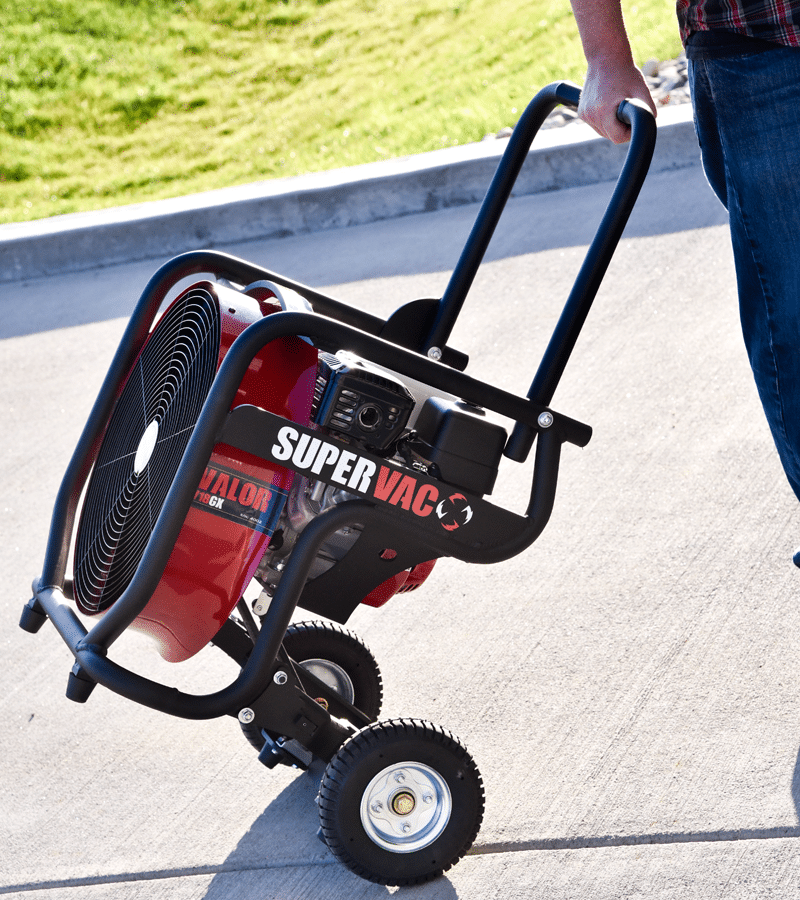

Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves

Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs and curbs easily; tires are placed on the back of the frame so that firefighters never have to put themselves between the PPV and the fire during setup

Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat

Precision-Spun Steel Shroud: Provides durability with max airflow

StreamShaper Guard: Standard guard, designed for farther setback; Air Cone Guard available by request

AMCA Licensed Airflow: Ratings listed below are based on tests in accordance with Air Movement Control Association (AMCA publication 211) and comply with the AMCA certified ratings program

V18-ES Specs

Motor: Leeson, single speed, TEAO, 1Hp, 60/50hz, 115/230V

HxWxD: 23.5″ x 22″ x 21″ – 600mm x 560mm x 535mm

Blade Diameter: 18″ – 457mm

Weight: 80 lbs – 36.5 kg

RPM: 1,750

Start Requirements: 4,000w – 15 amp circuit

Run Requirements: 1,500w

Set Back: 9ft – 2.7m

Angle: 13°

Output: 6,378 cfm – 10,836 cmh

*RPM is at 60Hz – for 50Hz – RPM and output should be multiplied by 5/6
