P8S

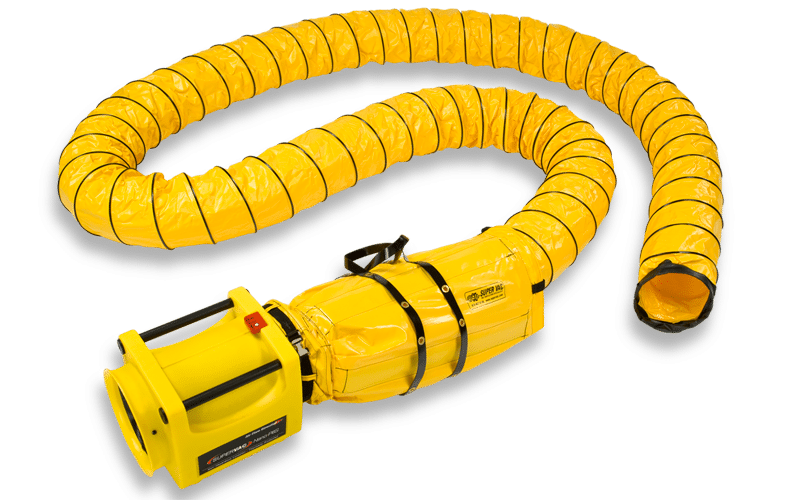

The Nano P8S is an 8″ confined space fan designed for confined space ventilation challenges.  The P8S delivers the highest airflow in its class and can be used to supply clean air or to exhaust fumes from an area.

P8S Features

8″ Blade

2 Carry Handles

Can be Used for Negative or Positive Pressure Operations

Duct can be Attached to Either End

5 Year Warranty

P8S Specs

Motor – 1/3 HP, TEAO (Totally Enclosed Air Over), 50/60Hz, 115V AC

HxWxD – 11.5″ x 10.75″ x 16″ – 292 mm x 273 mm x 406 mm

Blade Diameter – 8″ – 203 mm

Weight – 20 lbs – 9 kg

Output – 1,037 cfm – 1,760 cmh

*Output is at 60Hz – for 50Hz – output should be multiplied by 5/6

Download Spec PDF
NanoPac

Available as a Kit

Includes:

(1) Nano P8S +

choice of 15 or 25 ft duct for standard ventilation
