Confined Space Ventilators by Super Vac have unmatched durability and will last for years.  The entire frame is constructed of steel and the patented 4 tip recurve blade is made of aluminum and precision balanced maximizing output.

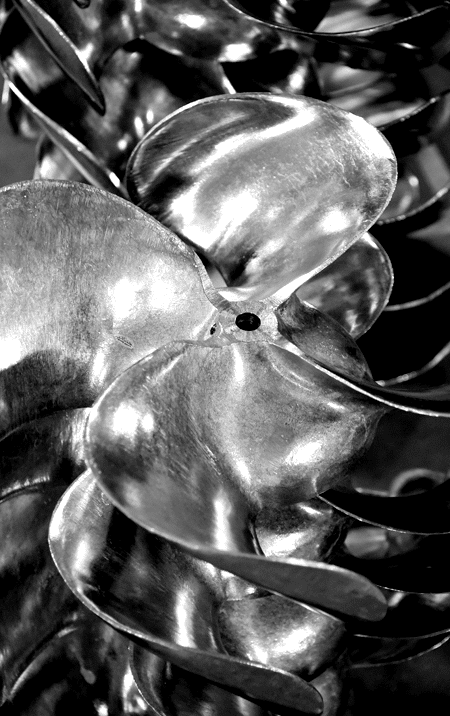

Blades on Electric Smoke Ejector

Confined Space Box Fans feature Super Vac’s patented 4-tip recurve aluminum blade.

Available Sizes

12″: The most compact size ventilator – fits into the tightest apparatus compartments

16″: The most popular size ventilator – perfect combination of size and power

20″: Capable of handling larger jobs – will run on 15-amp circuits

24″: The largest confined space ventilator available – requires 20-amp circuit

Available Motors

Single Speed: TEAO (Totally Enclosed Air Over) motor – designed to have the ability to pull air deep into a structure or underground vault

Single High Speed: TEAO (Totally Enclosed Air Over) high speed motor – an affordable, quality product for departments looking for a more powerful ventilator – only available in 12″ & 16″

Hazardous Location: single speed, hazardous location motor and switch – designed  to handle any ventilation situation including potentially explosive environments – UL Listed Class 1, Group D

Variable Speed: precise control of air movement and up to 33% more airflow than single speed motors – will run on any 15 amp GFCI circuit and new hydraulic generators

Pneumatic: the most effective air powered fans available, can be used for hazardous locations with unknown gases

12″ Fans

Model Weight Motor Output
F124
40 lbs 1/3 HP Single Speed 2,100 cfm
HF124
40 lbs 1/2 HP Single Speed 3,700 cfm
F124E
42 lbs 1/3 HP Hazardous Location 2,100 cfm
HF124E
42 lbs 1/2 HP Hazardous Location 3,700 cfm
VF124
40 lbs 1 HP Variable Speed 3,100 cfm
AF124
39 lbs 1/2 HP Pneumatic 3,800 cfm

16″ Fans

Model Weight Motor Output
F164
44 lbs 1/3 HP Single Speed 5,200 cfm
HF164
59 lbs 1-1/2 HP Single Speed 9,620 cfm
F164E
49 lbs 1/3 HP Hazardous Location 5,200 cfm
HF164E
63 lbs 1-1/2 HP Hazardous Location 9,620 cfm
VF164
52 lbs 1 HP Variable Speed 5,900 cfm
AF164
45 lbs 1-1/2 HP Pneumatic 9,600 cfm

20″ Fans

Model Weight Motor Output
F200
85 lbs 1 HP Single Speed 9,500 cfm
F200E
93 lbs 1 HP Hazardous Location 9,500 cfm
VF200
88 lbs 1 HP Variable Speed 9,800 cfm
AF200
60 lbs 1-1/2 HP Pneumatic 9,800 cfm

24″ Fans

Model Weight Motor Output
F244
110 lbs 1-1/2 HP Single Speed 11,800 cfm
F244E
115 lbs 1-1/2 HP Hazardous Location 11,800 cfm
af244
105 lbs 5 HP Pneumatic 14,200 cfm
