SUPER VAC WATER TURBINE FANS

JUST ADD WATER — WATER TURBINE WT SERIES


HYDRAULIC FANS FOR ANY HAZARD


1 2 3

Scroll mouse or click above to rotate product.

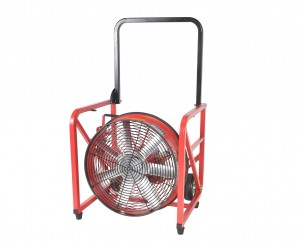

Water turbine motors power these positive pressure ventilation fans. These hydraulic fans run without the use of electricity or gasoline, making them great in explosive locations with unknown gases. Ranging in sizes from 18” to 30”, the latter model is the largest portable PPV safe for these unstable environments, making them a fan favorite for docks and shipping facilities.
  1. 4-Position Tilt Frame with Step Brake: Provides -10°, 0°, 10°, 20°
  2. Cast Aluminum Blade: Holds up better than plastic in high heat
  3. Air Cone Guard: Provides max airflow; StreamShaper Guard optional
    See the difference >



WATER TURBINE MODELS AND SPECIFICATIONS

WATER TURBINE PPV Options


Click model number for spec sheet. Click the OUTPUT calculator to determine the ventilation duration of a room.


× How to use

Ventilation Duration Estimator

Select unit of measure:


Scroll right for full chart.


WATER TURBINEWEIGHTFAN SIZE HxWxDPowerConsumptionOUTPUT
16"
Blades
716WT70 lbs
32 kg
20" x 20.5" x 16"
510 x 520 x 405 mm
5.5 HP water turbine 100-250 psi65 gpm12,900 cfm
21,920 cmh
18"
Blades
718WT76 lbs
34.5 kg
21.5" x 22.5" x 18.75"
555 x 575 x 480 mm
5.5 HP water turbine 100-250 psi65 gpm16,830 cfm
28,595 cmh
20"
Blades
720WT78 lbs
35.5 kg
25.5" x 25.5" x 18.75"
650 x 650 x 480 mm
5.5 HP water turbine 100-250 psi65 gpm19,650 cfm
33,385 cmh
24"
Blades
724WT88 lbs
40 kg
27.5" x 29" x 21"
705 x 740 x 535 mm
12 HP water turbine 100-250 psi130 gpm22,470 cfm
38,175 cmh
30"
Blades
730WT102 lbs
46.5 kg
39" x 37" x 27.5"
990 x 940 x 700 mm
12 HP water turbine 100-250 psi130 gpm24,800 cfm
42,135 cmh
