P8XE, Hazardous Location Nano

Home/Industrial Nano/P8XE, Hazardous Location Nano

P8XE

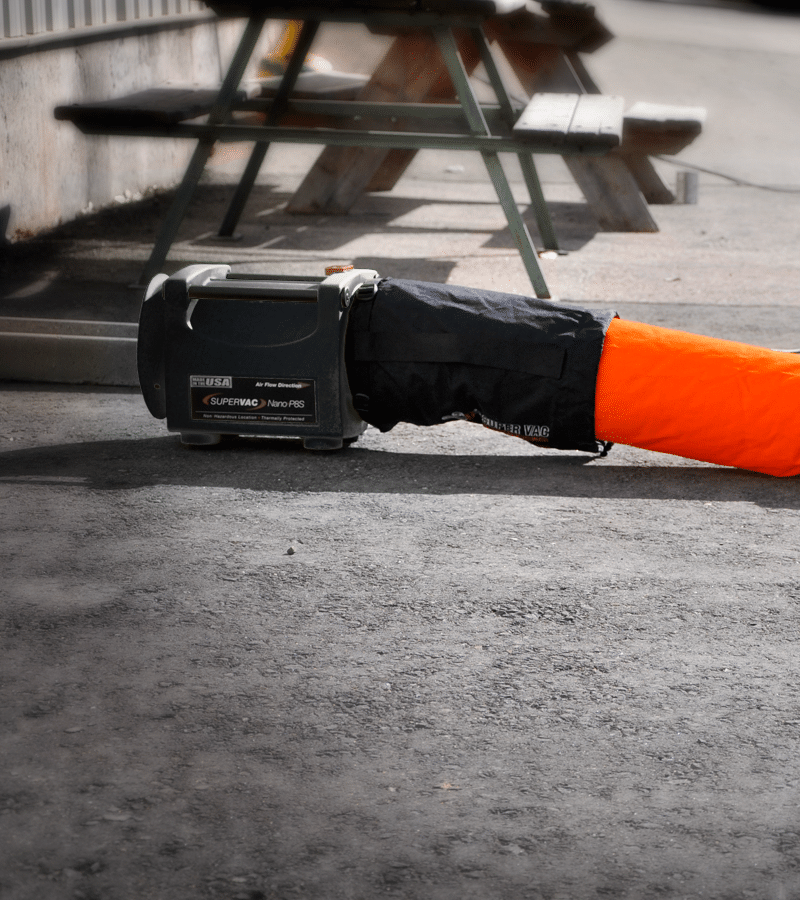

The Nano P8XE is an 8″ industrial fan designed for confined space ventilation challenges with unknown gases and potentially dangerous environments.  The P8XE delivers the highest airflow in its class and can be used to supply clean air or to exhaust fumes from an area. The P8XE is powered by a motor rated for Class 1 Group D environments.

P8XE Features

8″ Blade

2 Carry Handles

Can be Used for Negative or Positive Pressure Operations

Duct can be Attached to Either End

5 Year Warranty

P8XE Specs

Motor – 1/3 Hp, hazardous location rated for Group 1 Class D, 60hz, 115/230V

HxWxD – 11.5″ x 10.75″ x 16″ – 292mm x 273mm x 406mm

Blade Diameter – 8″ – 203mm

Weight – 22 lbs – 10 kg

Output – 1037 cfm – 1760 cmh

*Output is at 60Hz – for 50Hz – output should be multiplied by 5/6

NanoPac

Available as a Kit

Includes:

(1) Nano P8XE +

choice of 15 or 25 ft static dissipating duct for ventilation in explosive environments
